Description

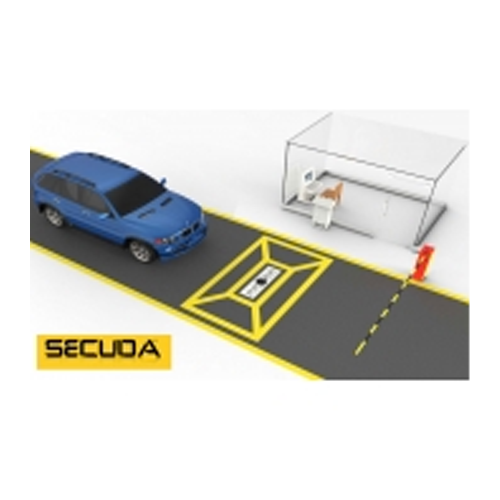

The Secuda At 3300 Under-Vehicle Imaging and Scanning System has been adapted to inspect mainly under of some various vehicles. It can quickly and accurately determine threats / smuggling / human smuggling. The security control speed and accuracy of the UVSS device has been greatly developed and has reduced investments in human power.
Important points
- Special air drying circulation system
- Smart alarm
- Airtight scaning unit (IP 68)
- Preventing fog function
- Anti-collision system (for connecting barrier etc.)
- Proper packaging management solution
Main System:
- Brand: Grantech (UFO6377H-SP1-953)
- CPU: Intel® Core ™ 2 Duo CPU
- P8600@2.4GHz or higher
- Memory: 2G (optional 4G)
- Graphics: Inter (R) Gen 5.0 Integrated graphics engine
- Hard Drive: SATA2 Hard Drive 500G
- Dual Lan (at least one Intel Gigabit)
- 0 (up to 4 parts)
- Monitor: 22inch LCD, resolution up to 1920 * 1080
- Scene Video Recording: 4 channels, scene video compression algorithm: H264
Features:
- Automatic digital zone scanning camera with high resolution and clear image
- A full image of the under vehicle can be observed without a defect and the image is clear, complete and without distortion, the diameter of the object is not less than 2 mm in diameter.
- Prepare audit procedures to meet the needs of various locations.
- Multi-scene image viewing, recording function.
- Multilingual user interface design
- Strong scalability for easy control of various system connections.
- Automatic plate recognition system (Optional)
- Multi-device network control functions (Optional)
- Installed Scanning Parts:
- Camera: Sensor: Zone scan CCD
- Resolution: 5000 * 2048 pixels
- Power Supply: 24VDC, 3A
- Illumination: LED, Power Supply: 24VDC, 150W
- Size: 1200mm x 350mm
- -25 degrees to +70 degrees
Controller:
- Introduction: 2 channel induction boom
- Output: 1 channel switching type 12VDC
- Communication Point: RS485, Ethernet (Optional)
- Working Temperature: -10 ℃ to 55 ℃
Related words: Under vehicle search, under vehicle imaging, under vehicle scanning, under vehicle camera system, under vehicle detection system
