Description

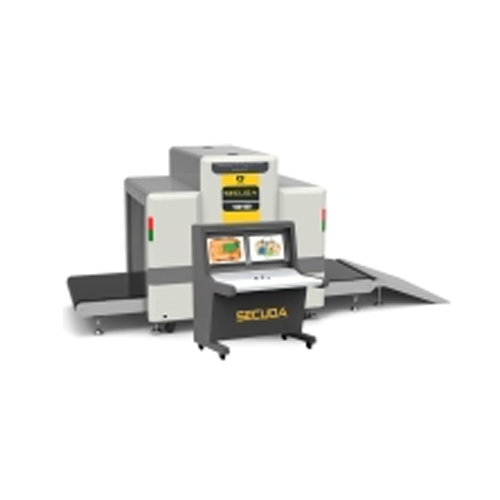

General Description

• Tunnel Size: 1000 (W) x 1000 (H) mm
• Carrier Speed: 0.2m / sec.
• Maximum Carrying Load: 250kg
• Per Control Dose:< 1.6pGy/h
• Resolution:< 0.0787mm
• Spatial Resolution: Level: search.3mm, Vertical: search.0mm
• Penetration Resolution: Dia 0.511 mm
• Penetration: 40mm Steel
• Film Security: ISO1600 Film Guaranteed
• X-ray Leakage:< 0.1pGy/h

X-ray Generator

• Direction Creation: Down
• Angle Creation: 80 degrees
• Anode Voltage: 100-160Kv  Anode Power: 0.4 to 1.2mA
• Cooling / Duty Cycle: Oil Cooling / 100%

Display System

• X-ray Sensor: L-shaped Photodiode array (multi-energy), 12bit depth
• Monitor: High color Resolution, LCD compatible, 17 inch
• Image Processing: Edge enhancement, Image enhancement, image lighting, reduction of darkness, image rotation, image rewind.
• Image Grayness  Level: 4096
• Maximum Image Resolution: 1024 * 1280 pixels
• Image Processing: 24bit real time
• Image Storage: 60000 images are stored in real time
• Zones & Zoom: 1-9 image regions, 2,4,8,16,32,64 64 times enlargement, full screen ,continuous observation .
• Very Energetic Objects Separation: organic objects in orange, inorganic objects in blue, mixed in green.
• High Energy / Low Energy: conversion from High energy to low energy .
• Helps in the detection of drugs and explosives.

Data Setup

• Operating Temperature / Humidity: -20ºC-60ºC / 20% -95% (non-condensing)
• Storage Temperature / Humidity: 20 -60 / 20% -95% (Non-condensing)
• Operating Power: -220VAC (± 10%) 50 ± 3Hz
• Power Consumption: 1.0 KW (max)
• Noise: <58dB
